PZ513BA P-Channel Enhancement Mode MOSFET

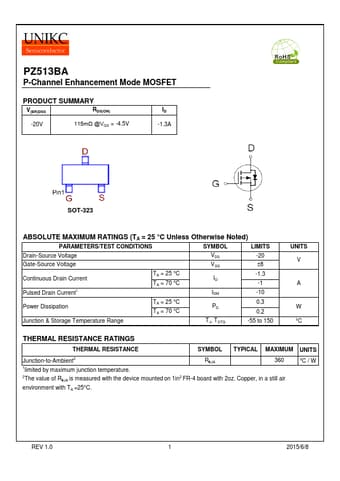

PZ513BA P-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) -20V 115mΩ @VGS = -4.5V ID -1.3A SOT-323 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS -20 Gate-Source Voltage VGS ±8 Continuous Drain Current Pulsed Drain Current1 TA = 25 °C TA = 70 °C ID -1.3 -1 IDM -10 Power Dissipation TA = 25 °C PD 0.3 TA = 70 °C 0.2 Junction & Storage Temperature Range TJ, TSTG -55 to 15.
