PZ5203EMA - P-Channel MOSFET

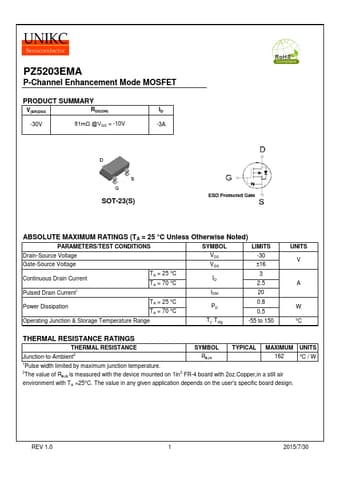

PZ5203EMA P-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) -30V 51mΩ @VGS = -10V ID -3A SOT-23(S) ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS -30 Gate-Source Voltage VGS ±16 Continuous Drain Current Pulsed Drain Current1 TA = 25 °C TA = 70 °C ID IDM 3 2.5 20 Power Dissipation TA = 25 °C TA = 70 °C PD 0.8 0.5 Operating Junction & Storage Temperature Range Tj, Tstg -55 to
