PZ5203QV MOSFET

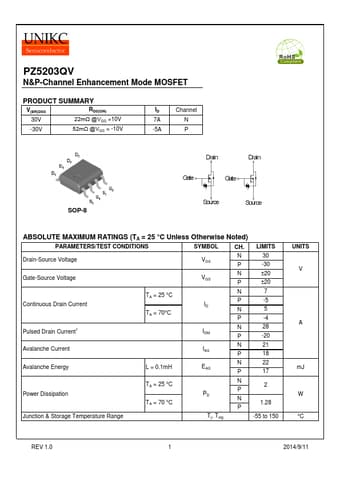

PZ5203QV N&P-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS 30V RDS(ON) 22mΩ @VGS =10V -30V 52mΩ @VGS = -10V ID Channel 7A N -5A P SOP-8 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL CH. LIMITS Drain-Source Voltage N 30 VDS P -30 Gate-Source Voltage N ±20 VGS P ±20 Continuous Drain Current TA = 25 °C TA = 70°C N7 P -5 ID N 5 P -4 Pulsed Drain Current1 N 28 IDM P -20 Avalanche Current N 21 IAS P 18 Avalanche Energy .
