IRG4BC20UD-S INSULATED GATE BIPOLAR TRANSISTOR

IRG4BC20UD-S Description

PD- 95565A IRG4BC20UD-SPbF INSULATED GATE BIPOLAR TRANSISTOR WITH UltraFast CoPack IGBT ULTRAFAST SOFT RECOVERY DIODE .

IRG4BC20UD-S Features

* UltraFast: Optimized for high operating frequencies 8-40 kHz in hard switching, >200kHz in resonant mode
* Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3
* IGBT co-packaged with HEXFREDTM ultrafast, ultra-soft-recove

📥 Download Datasheet

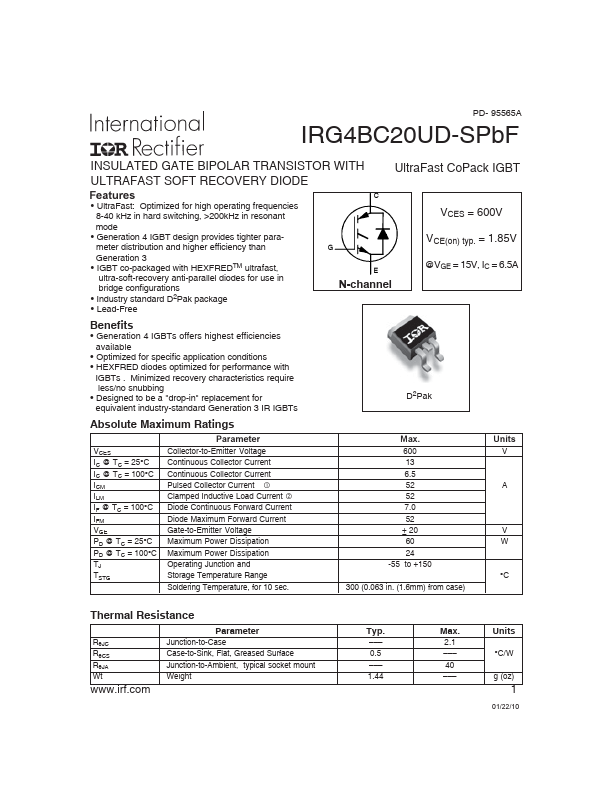

Preview of IRG4BC20UD-S PDF

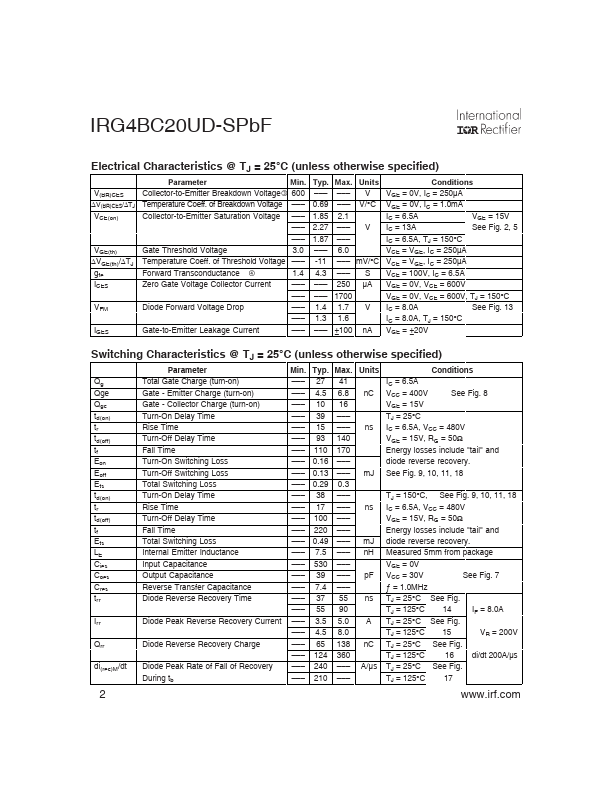

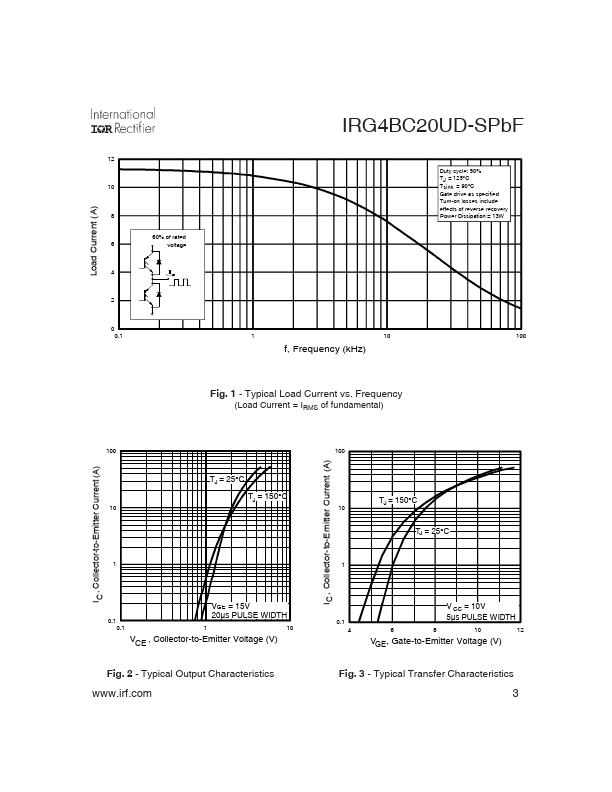

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IRG4BC20UD-S
Manufacturer
IRF
File Size
362.24 KB
Datasheet
IRG4BC20UD-S_IRF.pdf
Description
INSULATED GATE BIPOLAR TRANSISTOR
