IRG4PC50F - Fast Speed IGBT

IRF

📥 Download Datasheet

IRG4PC50F Datasheet Preview — Preview of IRG4PC50F PDF

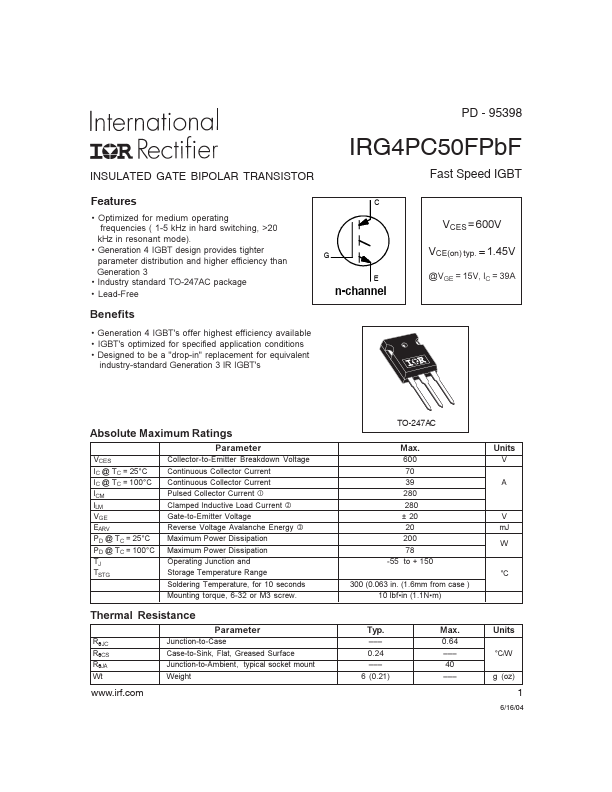

datasheet Preview Page 2

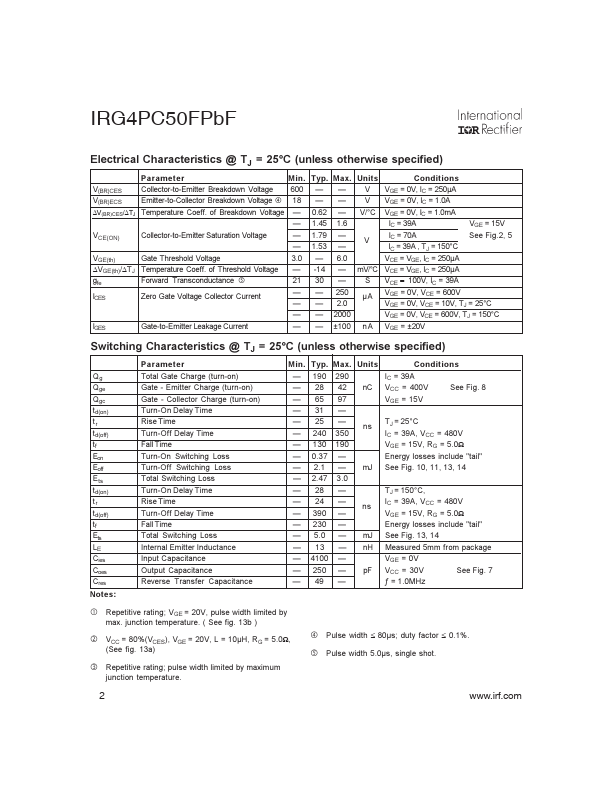

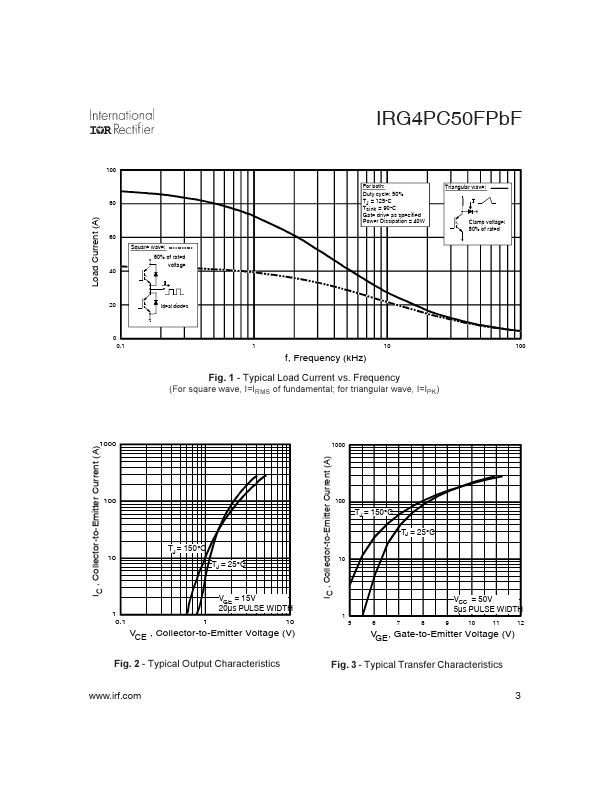

datasheet Preview Page 3

Datasheet Details

Part number	IRG4PC50F
Manufacturer	IRF
File Size	310.06 KB
Description	Fast Speed IGBT
Datasheet	IRG4PC50F_IRF.pdf

IRG4PC50F Product details

Features

Optimized for medium operating frequencies ( 1-5 kHz in hard switching, >20 kHz in resonant mode). Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3 Industry standard TO-247AC package Lead-Free C G E n-channel Benefits Generation 4 IGBT's offer highest efficiency available IGBT's optimized for specified.
