IRG4PC50FDPBF - INSULATED GATE BIPOLAR TRANSISTOR

Datasheet Summary

Features

  • Fast: Optimized for medium operating frequencies ( 1-5 kHz in hard switching, >20 kHz in resonant mode).
  • Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3.
  • IGBT co-packaged with.

📥 Download Datasheet

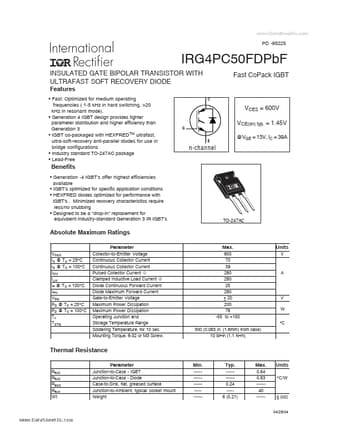

Datasheet preview – IRG4PC50FDPBF

📁 Similar Datasheet

  • IRG4PC50FD - INSULATED GATE BIPOLAR TRANSISTOR (IRF)
  • IRG4PC50F - Fast Speed IGBT (IRF)
  • IRG4PC50KD - INSULATED GATE BIPOLAR TRANSISTOR (IRF)
  • IRG4PC50S - INSULATED GATE BIPOLAR TRANSISTOR (IRF)
  • IRG4PC50U - INSULATED GATE BIPOLAR TRANSISTOR (IRF)
  • IRG4PC50UD - INSULATED GATE BIPOLAR TRANSISTOR (IRF)
  • IRG4PC50W - INSULATED GATE BIPOLAR TRANSISTOR (IRF)
  • IRG4PC40F - INSULATED GATE BIPOLAR TRANSISTOR (IRF)
  • IRG4PC40FD - INSULATED GATE BIPOLAR TRANSISTOR (IRF)
  • IRG4PC40K - INSULATED GATE BIPOLAR TRANSISTOR (IRF)
Other Datasheets by International Rectifier

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com PD -95225 IRG4PC50FDPbF INSULATED GATE BIPOLAR TRANSISTOR WITH ULTRAFAST SOFT RECOVERY DIODE Features • Fast: Optimized for medium operating frequencies ( 1-5 kHz in hard switching, >20 kHz in resonant mode). • Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3 • IGBT co-packaged with HEXFREDTM ultrafast, ultra-soft-recovery anti-parallel diodes for use in bridge configurations • Industry standard TO-247AC package • Lead-Free C Fast CoPack IGBT VCES = 600V G E VCE(on) typ. = 1.45V @VGE = 15V, IC = 39A n-cha n ne l Benefits • Generation -4 IGBT's offer highest efficiencies available • IGBT's optimized for specific application conditions • HEXFRED diodes optimized for performance with IGBT's .
