IRG4PC50FD - INSULATED GATE BIPOLAR TRANSISTOR

Datasheet Summary

Features

  • Fast: Optimized for medium operating frequencies ( 1-5 kHz in hard switching, >20 kHz in resonant mode).
  • Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3.
  • IGBT co-packaged with.

📥 Download Datasheet

Datasheet preview – IRG4PC50FD

Datasheet Details

Part number IRG4PC50FD
Manufacturer IRF
File Size 211.82 KB
Description INSULATED GATE BIPOLAR TRANSISTOR
Datasheet download datasheet IRG4PC50FD Datasheet
Additional preview pages of the IRG4PC50FD datasheet.

📁 Similar Datasheet

  • IRG4PC50FDPBF - INSULATED GATE BIPOLAR TRANSISTOR (International Rectifier)
  • IRG4PC50F-EPBF - Fast Speed IGBT (International Rectifier)
  • IRG4PC50FPBF - Fast Speed IGBT (International Rectifier)
  • IRG4PC50K - INSULATED GATE BIPOLAR TRANSISTOR (International Rectifier)
  • IRG4PC50KDPBF - UltraFast IGBT (International Rectifier)
  • IRG4PC50KPBF - INSULATED GATE BIPOLAR TRANSISTOR (International Rectifier)
  • IRG4PC50SDPBF - INSULATED GATE BIPOLAR TRANSISTOR (International Rectifier)
  • IRG4PC50SPBF - INSULATED GATE BIPOLAR TRANSISTOR (International Rectifier)
  • IRG4PC50UDPBF - INSULATED GATE BIPOLAR TRANSISTOR (International Rectifier)
  • IRG4PC50UPBF - INSULATED GATE BIPOLAR TRANSISTOR (International Rectifier)
Other Datasheets by IRF

Full PDF Text Transcription

Click to expand full text

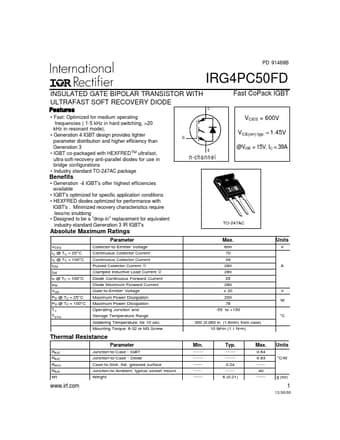

PD 91469B IRG4PC50FD INSULATED GATE BIPOLAR TRANSISTOR WITH ULTRAFAST SOFT RECOVERY DIODE Features • Fast: Optimized for medium operating frequencies ( 1-5 kHz in hard switching, >20 kHz in resonant mode). • Generation 4 IGBT design provides tighter parameter distribution and higher efficiency than Generation 3 • IGBT co-packaged with HEXFREDTM ultrafast, ultra-soft-recovery anti-parallel diodes for use in bridge configurations • Industry standard TO-247AC package C Fast CoPack IGBT VCES = 600V G E VCE(on) typ. = 1.45V @VGE = 15V, IC = 39A n-cha nn el Benefits • Generation -4 IGBT's offer highest efficiencies available • IGBT's optimized for specific application conditions • HEXFRED diodes optimized for performance with IGBT's .
