IS480P Datasheet, Speed Photocoupler, ISOCOM

High speed photocoupler

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	In Stock	Quantity	Price	Buy Now
	Isocom Components	IS480P	IS480P	OPTOISO 5KV 1CH GATE DRIVER 6SO	DigiKey	0	10000 units	$0.68	🛒 Buy Now

📥 Download PDF (1.72 MB)

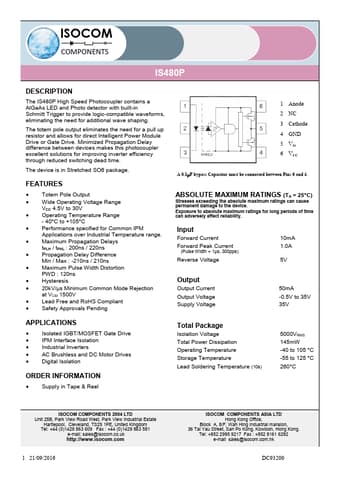

IS480P Datasheet Preview Page 1 — Preview of IS480P Datasheet

PDF File Details

Part number:

IS480P

Manufacturer:

ISOCOM

File Size:

1.72 MB

Download:

📄 Download the IS480P Datasheet PDF

Description:

High speed photocoupler.
The IS480P High Speed Photocoupler contains a AlGaAs LED and Photo detector with built-in Schmitt Trigger to provide logic-compatible waveforms, eliminating the need for additional wave shaping.

The t.

✔ IS480P Features

Totem Pole Output
Wide Operating Voltage Range VCC 4.5V to 30V
Operating Temperature Range - 40°C to +105°C
Performance specified for Common IPM Applications over

✔ IS480P Application

over Industrial Temperature range.
Maximum Propagation Delays tPLH / tPHL : 200ns / 220ns
Propagation De
