IS489 - Low Voltage Operating Type High Sensitivity OPIC Light Detector

Name: IS489
SKU: IS489-260757

Sharp Electrionic Components

The IS489 by Sharp Electrionic Components is a Low Voltage Operating Type High Sensitivity OPIC Light Detector. Below is the official datasheet preview.

📥 Download Datasheet

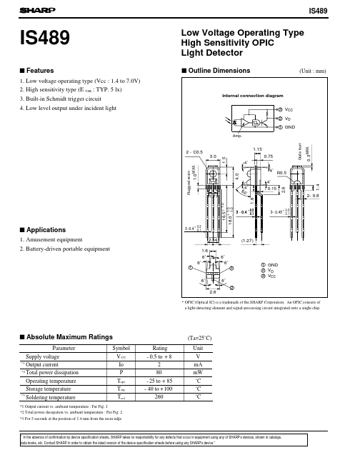

IS489 Low Voltage Operating Type High Sensitivity OPIC Light Detector by Sharp Electrionic Components - Datasheet Preview — Official preview page of the **IS489** Low Voltage Operating Type High Sensitivity OPIC Light Detector datasheet (Sharp Electrionic Components).

Datasheet Details

Part number	IS489
Manufacturer	Sharp Electrionic Components
File Size	44.70 KB
Description	Low Voltage Operating Type High Sensitivity OPIC Light Detector
Datasheet	IS489_SharpElectrionicComponents.pdf
Additional preview pages of the IS489 datasheet.

IS489 Product details

Features

1. Low voltage operating type (Vcc : 1.4 to 7.0V) 2. High sensitivity type (E VHL : TYP. 5 lx) 3. Built-in Schmidt trigger circuit 4. Low level output under incident light Low Voltage Operating Type High Sensitivity OPIC Light Detector s Outline Dimensions (Unit : mm) Internal connection diagram 3 VCC 2 VO 1 GND Amp. Gate burr 2 - C0.5 1.0 MAX. 1.15 1.5 3.0 0.75 4˚ 4.0 4˚ R0.5 4˚ 60 ˚ 16.5 ± 1.0 1.5 18.0 + - 1.0 1.6 2.6 4˚ 0.15 Rugged resin 0.3 MAX. 2- 0.8 1.4 (1.7 ) 0.3 3 - 0.4 + - 0.1.
