IS486 Datasheet, Detector, Sharp Electrionic Components

IS486 Features

  • Detector 1. Built-in schmidt trigger circuit 2. High sensitivity( E V : MAX. 35rx at Ta= 25˚C ) 3. A wide range of operating supply voltage (V CC : 4.5 to 17V) 4. LSTTL and TTL compatible output

PDF File Details

Part number:

IS486

Manufacturer:

Sharp Electrionic Components

File Size:

58.56kb

Download:

📄 Datasheet

Description:

Bulit-in amp. type opic light detector.

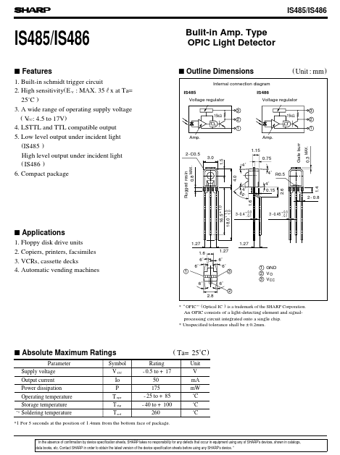

Datasheet Preview: IS486 📥 Download PDF (58.56kb)
Page 2 of IS486 Page 3 of IS486

IS486 Application

  • Applications 1. Floppy disk drive units 2. Copiers, printers, facsimiles 3. VCRs, cassette decks 4. Automatic vending machines 1.27 1.6 6˚ 6˚ 1 6˚ 2
