IS485 - Bulit-in Amp. Type OPIC Light Detector

Name: IS485
SKU: IS485-260753

Sharp Electrionic Components

The IS485 by Sharp Electrionic Components is a Bulit-in Amp. Type OPIC Light Detector. Below is the official datasheet preview.

Datasheet Details

Part number	IS485
Manufacturer	Sharp Electrionic Components
File Size	58.56 KB
Description	Bulit-in Amp. Type OPIC Light Detector
Datasheet	IS485_SharpElectrionicComponents.pdf

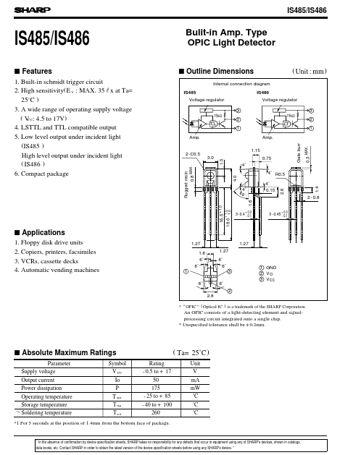

Additional preview pages of the IS485 datasheet.

1. Built-in schmidt trigger circuit 2. High sensitivity( E V : MAX. 35rx at Ta= 25˚C ) 3. A wide range of operating supply voltage (V CC : 4.5 to 17V) 4. LSTTL and TTL compatible output 5. Low level output under incident light (IS485 ) High level output under incident light ( IS486 ) 6. Compact package Bulit-in Amp. Type OPIC Light Detector s Outline Dimensions Internal connection diagram IS485 Voltage regulator 15k Ω 3 2 1 Amp. 1.15 1.5 3.0 0.75 4˚ 4.0 4˚ R0.5 4˚ 60 ˚ 16.5 ± 1.0 + 18.0 - 1.5 1.
