IS62LV12816ALL - 128K X 16 CMOS Static RAM

IS62LV12816ALL Description

www.DataSheet4U.com IS62LV12816ALL 128K x 16 CMOS STATIC RAM .
® MARCH 2001 The ISSI IS62LV12816ALL is a high-speed, 2,097,152-bit static RAM organized as 131,072 words by 16 bits.

IS62LV12816ALL Features

* High-speed access time: 55, 70, 100 ns
* CMOS low power operation
* 120 mW (typical) operating
* 6 µW (typical) CMOS standby
* TTL compatible interface levels
* Single 2.5V (min. ) to 3.45V (max. ) power supply
* Fully static operation: no cloc

📥 Download Datasheet

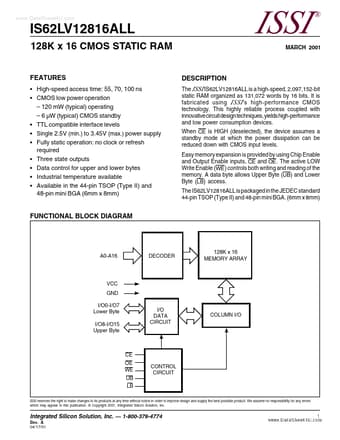

Preview of IS62LV12816ALL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IS62LV12816ALL
Manufacturer
ISSI
File Size
117.26 KB
Datasheet
IS62LV12816ALL_ISSI.pdf
Description
128K X 16 CMOS Static RAM
