IS62LV12816L - 128K x 16 CMOS STATIC RAM

Product Overview

ISSI

Datasheet Details

Part number	IS62LV12816L
Manufacturer	ISSI
File Size	83.15 KB
Description	128K x 16 CMOS STATIC RAM
Datasheet	IS62LV12816L Datasheet
Note	This datasheet PDF includes multiple part numbers: IS62LV12816L, IS62LV12816L-100B. Please refer to the document for exact specifications by model.

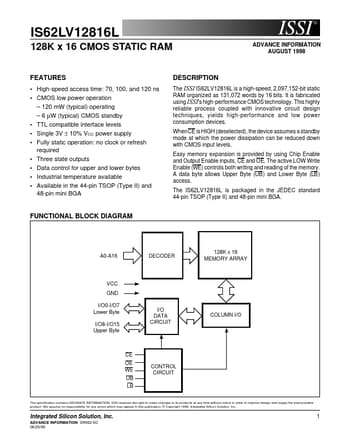

Additional preview pages of the IS62LV12816L datasheet.

Product details

Description

2The ISSI IS62LV12816L is a high-speed, 2,097,152-bit static RAM organized as 131,072 words by 16 bits.It is fabricated using ISSI's high-performance CMOS technology.This highly reliable process coupled with innovative circuit design techniques, yields high-performance and low power consumption devices.3 When CE is HIGH (deselected), the device assumes a standby mode at which the power dissipation c

Features

High-speed access time: 70, 100, and 120 ns.
CMOS low power operation.
120 mW (typical) operating.
6 µW (typical) CMOS standby.
TTL compatible interface levels.
Single 3V ± 10% VCC power supply.
Fully static operation: no clock or refresh required.
Three state outputs.
Data control for upper and lower bytes.
Industrial temperature available.
Available in the 44-pin TSOP (Type II) and 48-pin mini B.
