IS62WV5128DALL - ULTRA LOW POWER CMOS STATIC RAM

ISSI

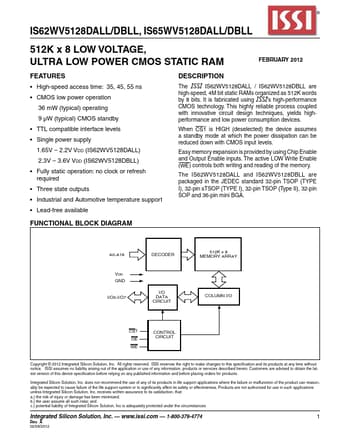

IS62WV5128DALL Datasheet Preview — Preview of IS62WV5128DALL PDF

Datasheet Details

Part number	IS62WV5128DALL
Manufacturer	ISSI
File Size	439.24 KB
Description	ULTRA LOW POWER CMOS STATIC RAM
Datasheet	IS62WV5128DALL-ISSI.pdf

IS62WV5128DALL Product details

Description

The ISSI IS62WV5128DALL / IS62WV5128DBLL are high-speed, 4M bit static RAMs organized as 512K words by 8 bits.It is fabricated using ISSI's high-performance CMOS technology.This highly reliable process coupled with innovative circuit design techniques, yields highperformance and low power consumption devices.When CS1 is HIGH (deselected) the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels.Easy memory expansion is provided by using Chi

Features

High-speed access time: 35, 45, 55 ns.
CMOS low power operation 36 mW (typical) operating 9 µW (typical) CMOS standby.
TTL compatible interface levels.
Single power supply 1.65V.
2.2V Vdd (IS62WV5128DALL) 2.3V.
3.6V Vdd (IS62WV5128DBLL).
Fully static operation: no clock or refresh required.
Three state outputs.
Industrial and Automotive temperature support.
Lead-free available.
