IS62WV5128EALL ULTRA LOW POWER CMOS STATIC RAM

The ISSI IS62/65WV5128EALL/BLL/CLL are highspeed, 4M bit static RAMs organized as 512K words by 8 bits. It is fabricated using ISSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields highperformance and low power consumption dev.

IS62WV5128EALL Features

* High-speed access time: 35ns, 45ns, 55ns

* CMOS low power operation

* Operating Current: 22 mA (max) at 85°C

* CMOS Standby Current: 3.7uA (typ) at 25°C

* TTL compatible interface levels

* Single power supply

* 1.65V-2.2V VDD (IS62/65WV5128EALL)

* 2.2

IS62WV5128EALL-ISSI.pdf

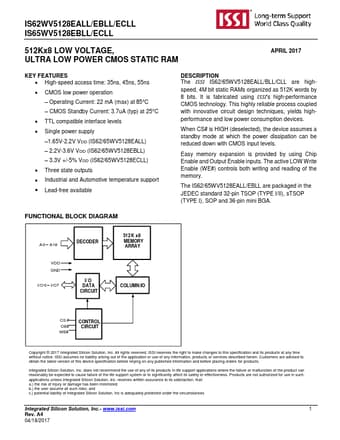

IS62WV5128EALL Datasheet Preview — Preview of IS62WV5128EALL PDF

Datasheet Details

Part number:

IS62WV5128EALL

Manufacturer:

ISSI

File Size:

804.55 KB

Description:

Ultra low power cmos static ram.
