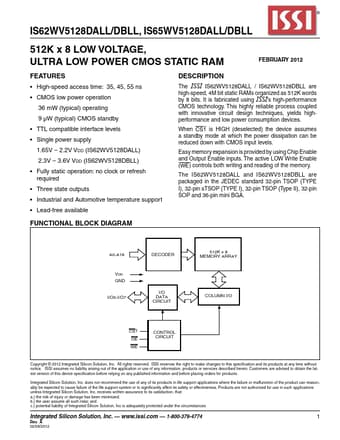

IS62WV5128DBLL, IS62WV5128DALL - ULTRA LOW POWER CMOS STATIC RAM

ISSI

IS62WV5128DBLL Datasheet Preview — This datasheet PDF includes multiple part numbers: IS62WV5128DBLL, IS62WV5128DALL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IS62WV5128DBLL, IS62WV5128DALL
Manufacturer	ISSI
File Size	439.24 KB
Description	ULTRA LOW POWER CMOS STATIC RAM
Datasheet	IS62WV5128DALL-ISSI.pdf
Note	This datasheet PDF includes multiple part numbers: IS62WV5128DBLL, IS62WV5128DALL. Please refer to the document for exact specifications by model.

IS62WV5128DBLL Product details

Description

The ISSI IS62WV5128DALL / IS62WV5128DBLL are high-speed, 4M bit static RAMs organized as 512K words by 8 bits.It is fabricated using ISSI's high-performance CMOS technology.This highly reliable process coupled with innovative circuit design techniques, yields highperformance and low power consumption devices.When CS1 is HIGH (deselected) the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels.Easy memory expansion is provided by using Chi

Features

High-speed access time: 35, 45, 55 ns.
CMOS low power operation 36 mW (typical) operating 9 µW (typical) CMOS standby.
TTL compatible interface levels.
Single power supply 1.65V.
2.2V Vdd (IS62WV5128DALL) 2.3V.
3.6V Vdd (IS62WV5128DBLL).
Fully static operation: no clock or refresh required.
Three state outputs.
Industrial and Automotive temperature support.
Lead-free available.
