IS62WV5128ALL - ULTRA LOW POWER CMOS STATIC RAM

Integrated Silicon Solution

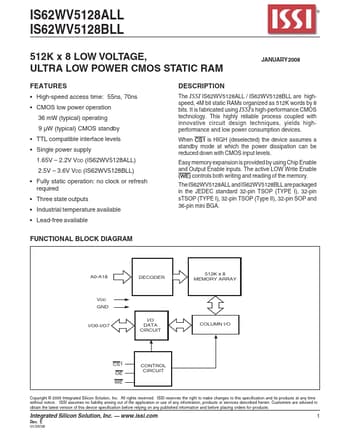

IS62WV5128ALL Datasheet Preview — Preview of IS62WV5128ALL PDF

Datasheet Details

Part number	IS62WV5128ALL
Manufacturer	Integrated Silicon Solution
File Size	295.89 KB
Description	ULTRA LOW POWER CMOS STATIC RAM
Datasheet	IS62WV5128ALL_IntegratedSiliconSolution.pdf

IS62WV5128ALL Product details

Description

The ISSI IS62WV5128ALL / IS62WV5128BLL are high- speed, 4M bit static RAMs organized as 512K words by 8 bits.It is fabricated using ISSI's high-performance CMOS technology.This highly reliable process coupled with innovative circuit design techniques, yields highperformance and low power consumption devices.When CS1 is HIGH (deselected) the device assumes a standby mode at which the power dissipation can be reduced down with CMOS input levels.Easy memory expansion is provided by using Chip E

Features

High-speed access time: 55ns, 70ns.
CMOS low power operation 36 mW (typical) operating 9 µW (typical) CMOS standby.
TTL compatible interface levels.
Single power supply 1.65V.
2.2V VDD (IS62WV5128ALL) 2.5V.
3.6V VDD (IS62WV5128BLL).
Fully static operation: no clock or refresh required.
Three state outputs.
Industrial temperature available.
Lead-free available.
