IS67WVE4M16ALL, IS66WVE4M16ALL Datasheet - ISSI

IS67WVE4M16ALL - 1.8V Core Async/Page PSRAM

PSRAM products are high-speed, CMOS pseudo-static random access memory developed for low-power, portable applications.

The 64Mb DRAM core device is organized as 4 Meg x 16 bits.

These devices include the industry-standard, asynchronous memory interface found on other low-power SRAM or pseudo-SRAM (P

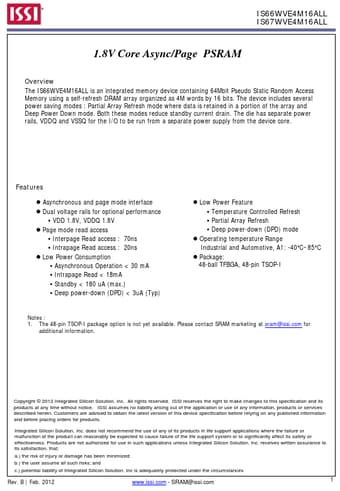

IS66WVE4M16ALL IS67WVE4M16ALL 1.8V Core Async/Page PSRAM Overview The IS66WVE4M16ALL is an integrated memory device containing 64Mbit Pseudo Static Random Access Memory using a self-refresh DRAM array organized as 4M words by 16 bits.

The device includes several power saving modes : Partial Array Refresh mode where data is retained in a portion of the array and Deep Power Down mode.

Both these modes reduce standby current drain.

The die has separate power rails, VDDQ and VSSQ for the I/O to be r

IS67WVE4M16ALL Features

* Asynchronous and page mode interface

* Dual voltage rails for optional performance

* VDD 1.8V, VDDQ 1.8V

* Page mode read access

* Interpage Read access : 70ns

* Intrapage Read access : 20ns

* Low Power Consumption

* Asynchronous Operation < 30 mA

* Intrapage Re

IS66WVE4M16ALL-ISSI.pdf

This datasheet PDF includes multiple part numbers: IS67WVE4M16ALL, IS66WVE4M16ALL. Please refer to the document for exact specifications by model.
IS67WVE4M16ALL Datasheet Preview Page 2 IS67WVE4M16ALL Datasheet Preview Page 3

Datasheet Details

Part number:

IS67WVE4M16ALL, IS66WVE4M16ALL

Manufacturer:

ISSI

File Size:

463.37 KB

Description:

1.8v core async/page psram.

Note:

This datasheet PDF includes multiple part numbers: IS67WVE4M16ALL, IS66WVE4M16ALL.
Please refer to the document for exact specifications by model.
