IS67WVE4M16TCLL, IS66WVE4M16EALL Datasheet - ISSI

IS67WVE4M16TCLL 64Mb Async/Page PSRAM

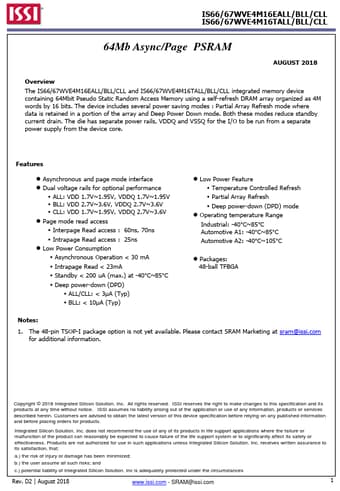

IS66/67WVE4M16EALL/BLL/CLL IS66/67WVE4M16TALL/BLL/CLL 64Mb Async/Page PSRAM AUGUST 2018 Overview The IS66/67WVE4M16EALL/BLL/CLL and IS66/67WVE4M16TALL/BLL/CLL integrated memory device containing 64Mbit Pseudo Static Random Access Memory using a self-refresh DRAM array organized as 4M words by 16 bits. The device includes several power saving modes : Partial Array Refresh mode where data is retained in a portion of the array and Deep Power Down mode. Both these modes reduce standby current dra.

IS67WVE4M16TCLL Features

* Asynchronous and page mode interface

* Dual voltage rails for optional performance

* ALL: VDD 1.7V~1.95V, VDDQ 1.7V~1.95V

* BLL: VDD 2.7V~3.6V, VDDQ 2.7V~3.6V

* CLL: VDD 1.7V~1.95V, VDDQ 2.7V~3.6V

* Page mode read access

* Interpage Read access : 60ns, 70ns

* Intrap

IS66WVE4M16EALL-ISSI.pdf

This datasheet PDF includes multiple part numbers: IS67WVE4M16TCLL, IS66WVE4M16EALL. Please refer to the document for exact specifications by model.
IS67WVE4M16TCLL Datasheet Preview Page 2 IS67WVE4M16TCLL Datasheet Preview Page 3

Datasheet Details

Part number:

IS67WVE4M16TCLL, IS66WVE4M16EALL

Manufacturer:

ISSI

File Size:

586.58 KB

Description:

64mb async/page psram.

Note:

This datasheet PDF includes multiple part numbers: IS67WVE4M16TCLL, IS66WVE4M16EALL.
Please refer to the document for exact specifications by model.
