DSEK60-06A Common Cathode Fast Recovery Epitaxial Diode (FRED)

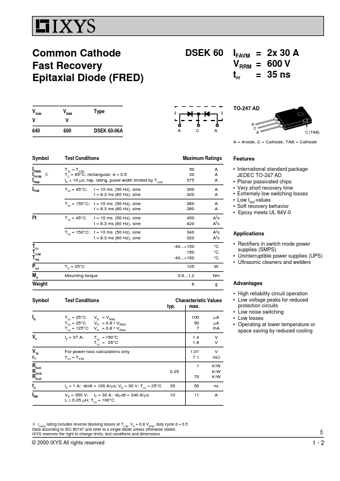

Common Cathode Fast Recovery Epitaxial Diode (FRED) DSEK 60 IFAVM = 2x 30 A VRRM = 600 V trr = 35 ns VRSM V 640 VRRM V 600 Type TO-247 AD A C A DSEK 60-06A A C A C (TAB) A = Anode, C = Cathode, TAB = Cathode Symbol IFRMS IFAVM ÿÿx IFRM IFSM Test Conditions TVJ = TVJM TC = 85°C; rectangular, d = 0.5 tP < 10 ms; rep. rating, pulse width limited by TVJM TVJ = 45°C; t = 10 ms (50 Hz), sine t = 8.3 ms (60 Hz), sine Maximum Ratings 50 30 375 300 320 260 280 450 420 340 320 -40+150 150 -.

DSEK60-06A Features

* q q q q q q q TVJ = 150°C; t = 10 ms (50 Hz), sine t = 8.3 ms (60 Hz), sine I2t TVJ = 45°C t = 10 ms (50 Hz), sine t = 8.3 ms (60 Hz), sine International standard package JEDEC TO-247 AD Planar passivated chips Very short recovery time Extremely low switching losses Low IRM-values Soft recovery b
