DSEK60-12A Datasheet - IXYS

DSEK60-12A - Fast Recovery Epitaxial Diode

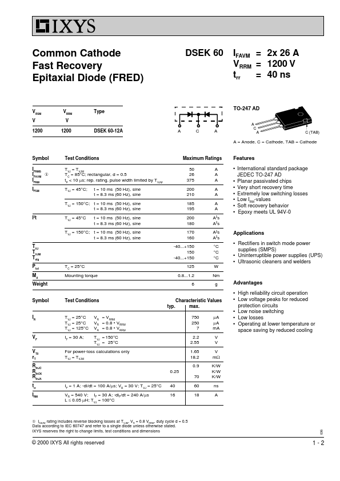

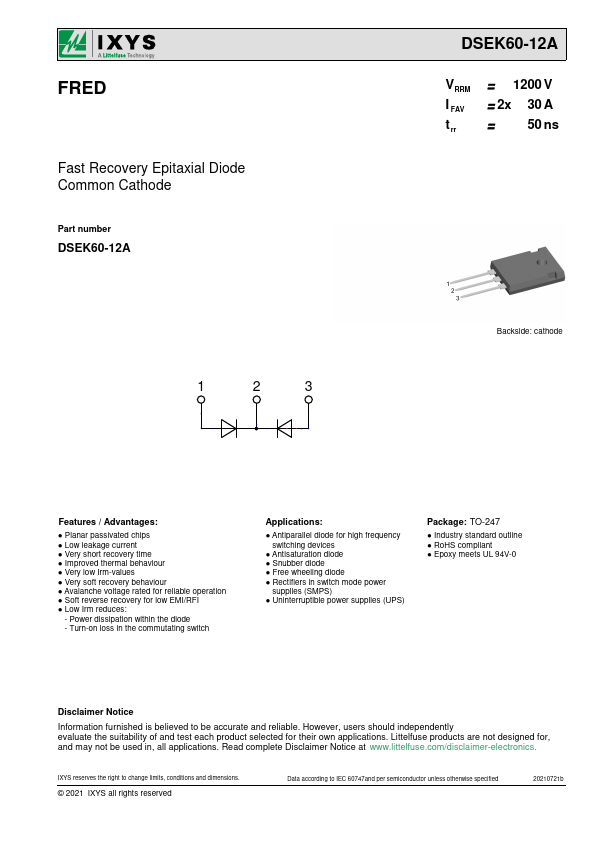

Common Cathode Fast Recovery Epitaxial Diode (FRED) DSEK 60 IFAVM = 2x 26 A VRRM = 1200 V trr = 40 ns VRSM V 1200 VRRM V 1200 Type DSEK 60-12A TO-247 AD ACA A C A C (TAB) A = Anode, C = Cathode, TAB = Cathode Symbol IFRMS IFAVM ÿÿx IFRM IFSM I2t TVJ TVJM Tstg Ptot Md Weight Symbol IR VF VT0 rT RthJC RthCK RthJA trr IRM Test Conditions TVJ = TVJM TC = 85°C; rectangular, d = 0.5 tP < 10 ms; rep.

rating, pulse width limited by TVJM TVJ = 45°C; t = 10 ms (50 Hz), sine t = 8.3 ms (60 Hz),

DSEK60-12A Features

* q International standard package JEDEC TO-247 AD q Planar passivated chips q Very short recovery time q Extremely low switching losses q Low I -values RM q Soft recovery behavior q Epoxy meets UL 94V-0 Applications q Rectifiers in switch mode power supplies (SMPS) q Uninterruptible power supplies (U

DSEK60-12A-IXYS.pdf

Preview of DSEK60-12A PDF

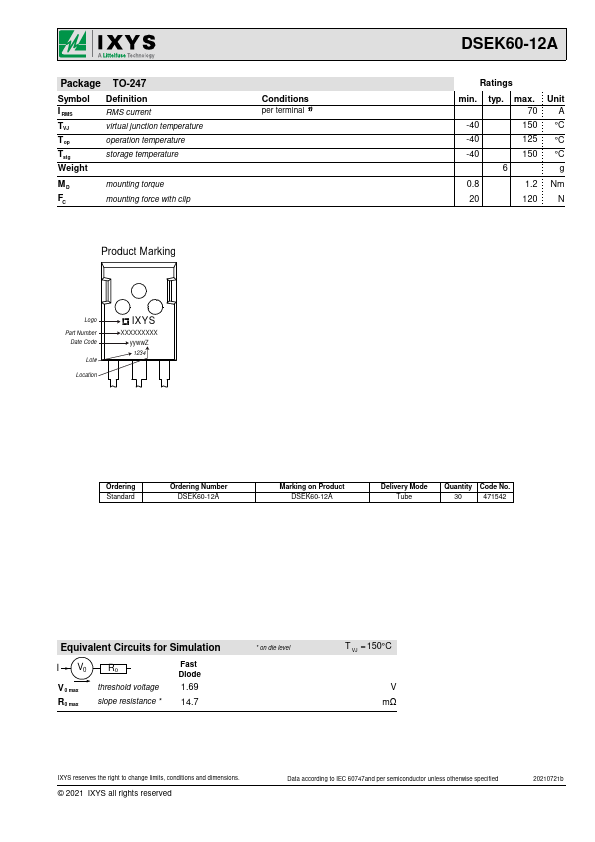

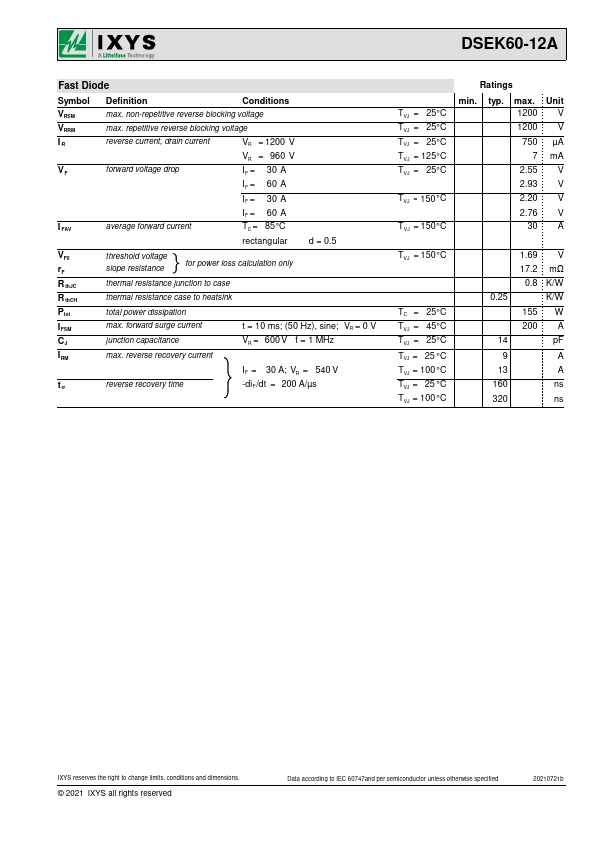

DSEK60-12A Datasheet Preview Page 2

Datasheet Details

Part number:

DSEK60-12A

Manufacturer:

IXYS

File Size:

46.51 KB

Description:

Fast recovery epitaxial diode.
