DSEK60-02AR Fast Recovery Epitaxial Diode

DSEK 60-02A DSEK 60-02AR Common Cathode Fast Recovery Epitaxial Diode (FRED) IFAVM = 2x34 A VRRM = 200 V trr = 35 ns VRSM V 200 200 VRRM V 200 200 Type DSEK 60-02A DSEK 60-02AR A C A TO-247 AD Version A ISOPLUS247TM Version AR C A G A h (TAB) C A G h Isolated back surface A = Anode, C = Cathode, G = Gate Symbol IFRMS IFAVM j IFRM IFSM I2t TVJ TVJM Tstg Ptot Md FC VISOL Weight Conditions TVJ = TVJM TC = 115°C; rectangular, d = 0.5 tP < 10 µs; rep. rating, pulse width limited b.

DSEK60-02AR Features

* International standard package JEDEC TO-247 AD

* Planar passivated chips

* Very short recovery time

* Extremely low switching losses

* Low IRM-values

* Soft recovery behavior

* Epoxy meets UL 94V-0

* Version AR isolated and UL reg

DSEK60-02A-IXYS.pdf

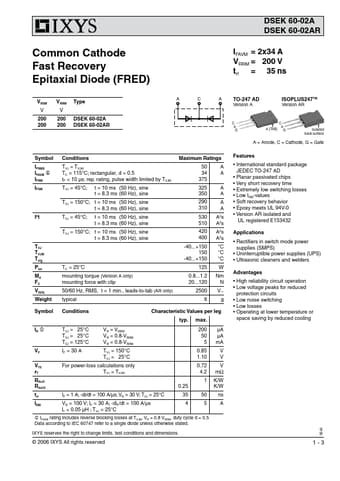

DSEK60-02AR Datasheet Preview — This datasheet PDF includes multiple part numbers: DSEK60-02AR, DSEK60-02A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

DSEK60-02AR, DSEK60-02A

Manufacturer:

IXYS

File Size:

210.71 KB

Description:

Fast recovery epitaxial diode.

Note:

This datasheet PDF includes multiple part numbers: DSEK60-02AR, DSEK60-02A.
Please refer to the document for exact specifications by model.
