IXFH23N60Q - HiPerFET Power MOSFETs Q-Class

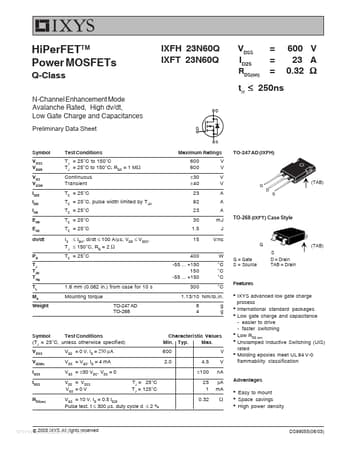

HiPerFETTM Power MOSFETs Q-Class N-Channel Enhancement Mode Avalanche Rated, High dv/dt, Low Gate Charge and Capacitances Preliminary Data Sheet IXFH 23N60Q IXFT 23N60Q VDSS ID25 RDS(on) = = = 600 V 23 A 0.32 Ω trr ≤ 250ns Symbol VDSS VDGR VGS VGSM ID25 IDM IAR EAR EAS dv/dt PD TJ TJM Tstg TL Md Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 MΩ Continuous Transient TC = 25°C TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C TC = 25°C IS ≤ IDM, di/dt ≤ 100 A.

IXFH23N60Q Features

* z 1.13/10 Nm/lb.in. Symbol Test Conditions (TJ = 25°C, unless otherwise specified) VDSS VGS(th) IGSS IDSS RDS(on) VGS = 0 V, ID = 250 µA VDS = VGS, ID = 4 mA VGS = ±30 VDC, VDS = 0 VDS = VDSS VGS = 0 V TJ = 25°C TJ = 125°C Characteristic Values Min. Typ. Max. 600 2.0 4.5 ±100 25 1 0.32 V V nA µA
