IXFM15N60 HiPerFET Power MOSFETs

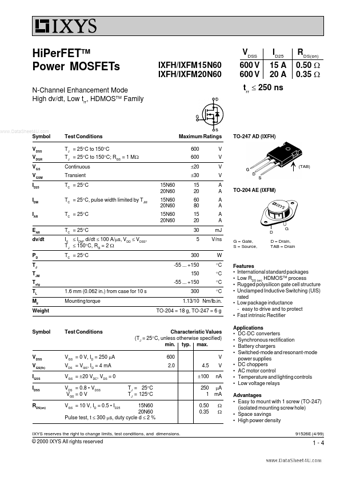

HiPerFETTM Power MOSFETs N-Channel Enhancement Mode High dv/dt, Low trr, HDMOSTM Family VDSS IXFH/IXFM 15 N60 IXFH/IXFM 20 N60 600 V 600 V ID25 15 A 20 A RDS(on) 0.50 W 0.35 W trr £ 250 ns www.DataSheet4U.com Symbol VDSS VDGR VGS VGSM ID25 IDM IAR EAR dv/dt PD TJ TJM Tstg TL Md Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGS = 1 MW Continuous Transient TC = 25°C TC = 25°C, pulse width limited by TJM TC = 25°C TC = 25°C IS £ IDM, di/dt £ 100 A/ms, VDD £ VDSS, TJ £ 150°C, .

IXFM15N60 Features

* International standard packages

* Low RDS (on) HDMOSTM process

* Rugged polysilicon gate cell structure

* Unclamped Inductive Switching (UIS) rated

* Low package inductance - easy to drive and to protect

* Fast intrinsic Rectifier Applications
