IXFT42N50P2 - Power MOSFET

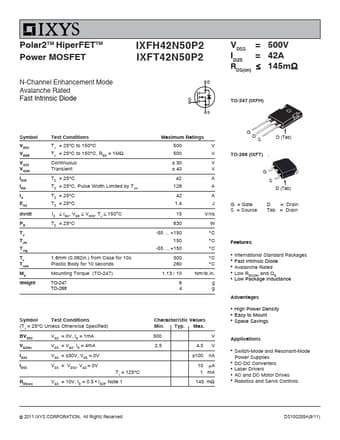

Polar2TM HiperFETTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Diode IXFH42N50P2 IXFT42N50P2 VDSS = ID25 = RDS(on) ≤ 500V 42A 145mΩ TO-247 (IXFH) Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TL Tsold Md Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Continuous Transient TC = 25°C TC = 25°C, Pulse Width Limited by TJM TC = 25°C TC = 25°C IS ≤ IDM, VDD ≤ VDSS, TJ ≤ 150°C TC = 25°C 1.6mm (0.062in.) from Case for 10s Plast

IXFT42N50P2 Features

* z International Standard Packages z Fast Intrinsic Diode z Avalanche Rated z Low RDS(ON) and QG z Low Package Inductance Advantages z High Power Density z Easy to Mount z Space Savings Applications z Switch-Mode and Resonant-Mode Power Supplies z DC-DC Converters z Laser Drivers z AC and DC Motor Dr
