IXGH12N100AU1 Datasheet, Igbt, IXYS Corporation

IXGH12N100AU1 Features

• Igbt
• International standard packages JEDEC TO-247
• IGBT with antiparallel FRED in one package
• HDMOSTM process
• Low VCE(sat) - for minimum on-state condu

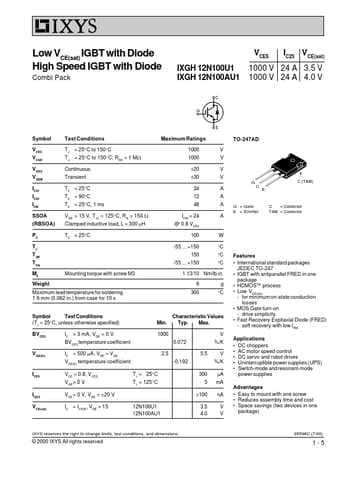

PDF File Details

Part number:

IXGH12N100AU1

Manufacturer:

IXYS Corporation

File Size:

151.40kb

Download:

📄 Datasheet

Description:

Igbt.

IXGH12N100AU1 Application

• Applications
• DC choppers
• AC motor speed control
• DC servo and robot drives
• Uninterruptible power supplies (UP
