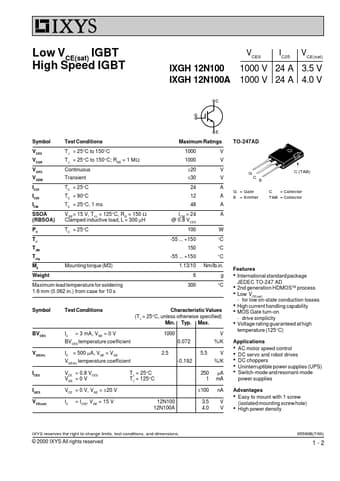

IXGH12N100 Datasheet, Igbt, IXYS

IXGH12N100 Features

• Igbt
• International standard package JEDEC TO-247 AD
• 2nd generation HDMOSTM process
• Low VCE(sat) - for low on-state conduction losses
• High current hand

PDF File Details

Part number:

IXGH12N100

Manufacturer:

IXYS

File Size:

100.30kb

Download:

📄 Datasheet

Description:

High speed igbt.

IXGH12N100 Application

• Applications
• AC motor speed control
• DC servo and robot drives
• DC choppers
• Uninterruptible power supplies (UP
