IXGH10N300 Datasheet, Igbt, IXYS Corporation

IXGH10N300 Features

  • Igbt High Peak Current Capability Low Saturation Voltage Low Gate Drive Requirement Molding Epoxies Meet UL 94 V-0 Flammability Classification G C E (TAB) G = Gate E = Emitter C = Collecto

PDF File Details

Part number:

IXGH10N300

Manufacturer:

IXYS Corporation

File Size:

221.10kb

Download:

📄 Datasheet

Description:

High voltage igbt.

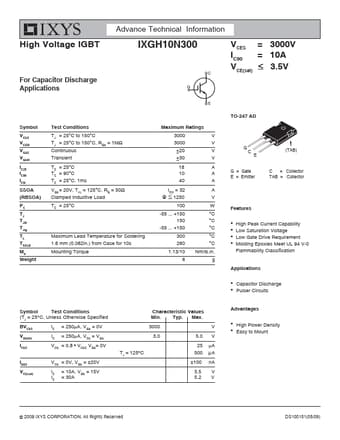

Datasheet Preview: IXGH10N300 📥 Download PDF (221.10kb)
Page 2 of IXGH10N300 Page 3 of IXGH10N300

IXGH10N300 Application

  • Applications TO-247 AD Symbol VCES VCGR VGES VGEM IC25 IC90 ICM SSOA (RBSOA) PC TJ TJM Tstg TL TSOLD Md Weight Maximum Lead Temperature for Solderi
