IXGH10N60 Datasheet, Igbt, IXYS Corporation

IXGH10N60 Features

• Igbt l International standard packages JEDEC TO-263 AA surface mountable and JEDEC TO-247 AD l 2nd generation HDMOSTM process Low VCE(sat) - for low on-state conduction losses l High current

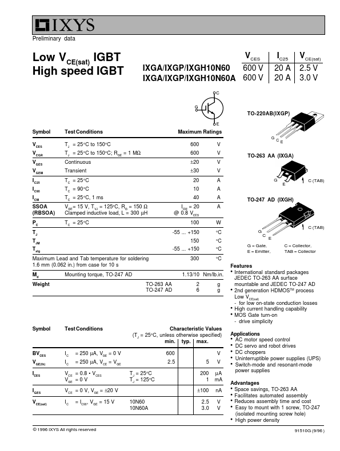

PDF File Details

Part number:

IXGH10N60

Manufacturer:

IXYS Corporation

File Size:

75.12kb

Download:

📄 Datasheet

Description:

High speed igbt.

IXGH10N60 Application

• Applications l AC motor speed control l DC servo and robot drives l DC choppers l Uninterruptible power supplies (UPS) l Switch-mode and resonant-mo
