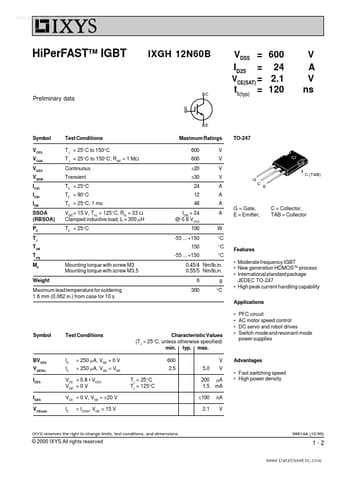

IXGH12N60B Datasheet, Igbt, IXYS Corporation

IXGH12N60B Features

• Igbt
• Moderate frequency IGBT
• New generation HDMOSTM process
• International standard package JEDEC TO-247
• High peak current handling capability Applicat

PDF File Details

Part number:

IXGH12N60B

Manufacturer:

IXYS Corporation

File Size:

66.94kb

Download:

📄 Datasheet

Description:

Hiperfast igbt.

IXGH12N60B Application

• Applications
• PFC circuit AC motor speed control DC servo and robot drives Switch-mode and resonant-mode powe
