IXGP12N60U1, IGBT

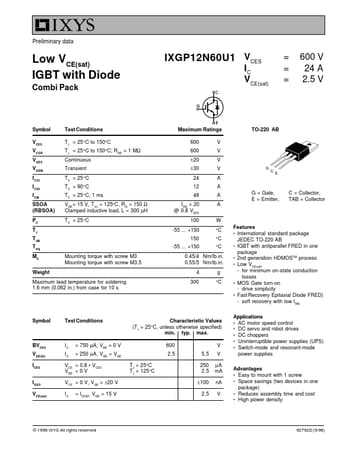

Preliminary data Low VCE(sat) IGBT with Diode Combi Pack IXGP12N60U1 VCES IC VCE(sat) = = = 600 V 24 A 2.5 V Symbol VCES VCGR VGES VGEM I C25 I C.

datasheet Preview Page 1 from Datasheet4u.com

IXGP12N60U1_IXYSCorporation.pdf

IXGP12N60U1 Datasheet Preview — Preview of IXGP12N60U1 PDF

Datasheet Details

Part number:

IXGP12N60U1

Manufacturer:

IXYS Corporation

File Size:

97.66 KB

Description:

IGBT

Features

* International standard package JEDEC TO-220 AB IGBT with antiparallel FRED in one package 2nd generation HDMOSTM process Low VCE(sat) - for minimum on-state conduction losses MOS Gate turn-on - drive simplicity Fast Recovery Epitaxial Diode FRED) - soft recovery with low IRM l l l l l l Symbol Tes

Applications

* AC motor speed control DC servo and robot drives DC choppers Uninterruptible power supplies (UPS) Switch-mode and resonant-mode power supplies l l l l l VCE = 0.8
* VCES VGE = 0 V VCE = 0 V, VGE = ±20 V IC = ICE90, VGE = 15 V l l l l Advantages Easy to mount with 1 screw Space savings (t
