IXGR40N60C IGBT

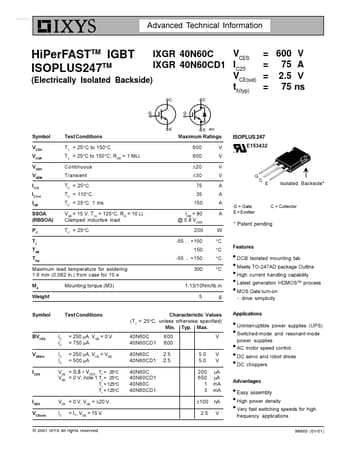

www.DataSheet4U.com Advanced Technical Information HiPerFASTTM IGBT ISOPLUS247TM VCES IXGR 40N60C IXGR 40N60CD1 IC25 VCE(sat) (Electrically Isolated Backside) tfi(typ) = 600 V = 75 A = 2.5 V = 75 ns (D1) Symbol VCES VCGR VGES VGEM I C25 I C110 ICM SSOA (RBSOA) PC TJ TJM Tstg Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C; RGE = 1 MW Continuous Transient TC = 25°C TC = 110°C TC = 25°C, 1 ms VGE = 15 V, TVJ = 125°C, RG = 10 W Clamped inductive load TC = 25°C Maximum Ratings 600 600 .

IXGR40N60C Features

* l l l l l DCB Isolated mounting tab Meets TO-247AD package Outline High current handling capability Latest generation HDMOSTM process MOS Gate turn-on - drive simplicity Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s Md Weight Symbol Test Conditions Mounting torque (M
