IXGR16N170AH1 High Voltage IGBT

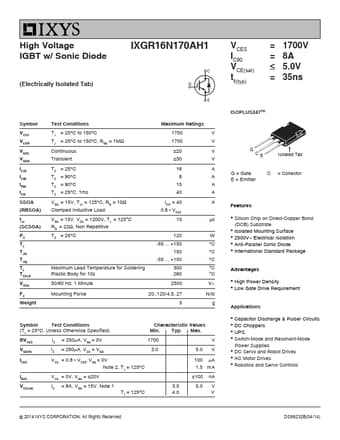

📥 Download Datasheet  Datasheet Preview Page 1

Description

High Voltage IGBT w/ Sonic Diode (Electrically Isolated Tab) IXGR16N170AH1 VCES IC90 VCE(sat) tfi(typ) = 1700V = 8A £ 5.0V = 35ns Symbol VCES VCG.

📥 Download Datasheet

Preview of IXGR16N170AH1 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
IXGR16N170AH1
Manufacturer
IXYS
File Size
294.58 KB
Datasheet
IXGR16N170AH1_IXYS.pdf
Description
High Voltage IGBT

Features

* Silicon Chip on Direct-Copper Bond (DCB) Substrate
* Isolated Mounting Surface
* 2500V~ Electrical Isolation
* Anti-Parallel Sonic Diode
* International Standard Package Advantages
* High Power Density

Applications

* Capacitor Discharge & Pulser Circuits
* DC Choppers
* UPS
* Switch-Mode and Resonant-Mode Power Supplies
* DC Servo and Robot Drives
* AC Motor Drives
* Robotics and Servo Controls © 2014 IXYS CORPORATION, All Rights Reserved DS99232B(04/14) Symbol Test Conditions
