IXGT20N60BD1

HiPerFAST IGBT

IXYS Corporation

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	IXYS Corporation	IXGT20N60BD1	IGBT 600V 40A TO-268AA	DigiKey	0	0	$0	🛒 Buy Now

Download Datasheet (114.41 KB)

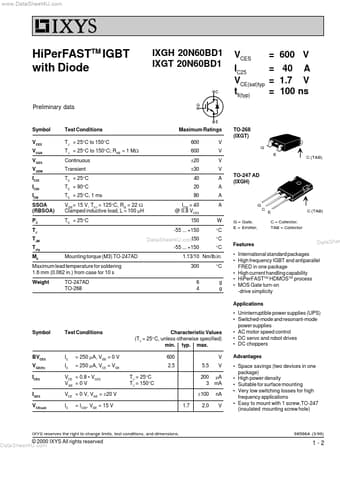

IXGT20N60BD1 Datasheet Preview — Preview of IXGT20N60BD1 Datasheet

Datasheet Details

Part number:

IXGT20N60BD1

Manufacturer:

IXYS Corporation

File Size:

114.41 KB

Description:

Hiperfast igbt.
www.DataSheet4U.com HiPerFASTTM IGBT with Diode IXGH 20N60BD1 IXGT 20N60BD1 VCES IC25 VCE(sat)typ.
tfi(typ) = = = = 600 40 1.7 100 V A V ns Preliminary data Symbol VCES VCGR VGES VGEM IC25 IC90.

✔ IXGT20N60BD1 Features

DataShee Mounting torque (M3) TO-247AD 1.13/10 Nm/lb.in. 300 6 4 Maximum lead temperature for soldering 1.6 mm (0.062 in.) from case for 10 s Weight TO-247AD TO-268

✔ IXGT20N60BD1 Application

Uninterruptible power supplies (UPS)
Switched-mode and resonant-mode power supplies
AC motor speed con
