IXTP02N50D High Voltage MOSFET

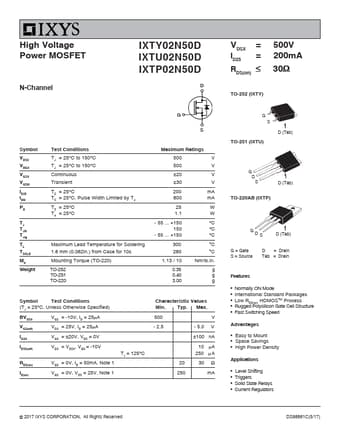

High Voltage Power MOSFET N-Channel IXTY02N50D IXTU02N50D IXTP02N50D D VDSX = ID25 =  RDS(on) 500V 200mA 30 TO-252 (IXTY) G S Symbol VDSX VDGX VGSX VGSM ID25 IDM PD TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25C to 150C TJ = 25C to 150C Continuous Transient TC = 25C TC = 25C, Pulse Width Limited by TJ TC = 25C TA = 25C Maximum Lead Temperature for Soldering 1.6 mm (0.062in.) from Case for 10s Mounting Torque (TO-220) TO-252 TO-251 TO-220 Maximum Ratings 500 V 500.

IXTP02N50D Features

* Normally ON Mode

*  International Standard Packages

*  Low RDS(on) HDMOSTM Process

* Rugged Polysilicon Gate Cell Structure

* Fast Switching Speed Advantages

* Easy to Mount

* Space Savings

* High Power Density Applications

IXTY02N50D_IXYSCorporation.pdf

IXTP02N50D Datasheet Preview — This datasheet PDF includes multiple part numbers: IXTP02N50D, IXTY02N50D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IXTP02N50D, IXTY02N50D

Manufacturer:

IXYS Corporation

File Size:

208.00 KB

Description:

High voltage mosfet.

Note:

This datasheet PDF includes multiple part numbers: IXTP02N50D, IXTY02N50D.
Please refer to the document for exact specifications by model.
