* International standard package
* Very low VF
* Extremely low switching losses
* Low IRM-values
* Epoxy meets UL 94V-0 Applications
* Rectifiers in switch mode power supplies (SMPS)
* Free wheeling diode in low voltage converters TC = 25°C m

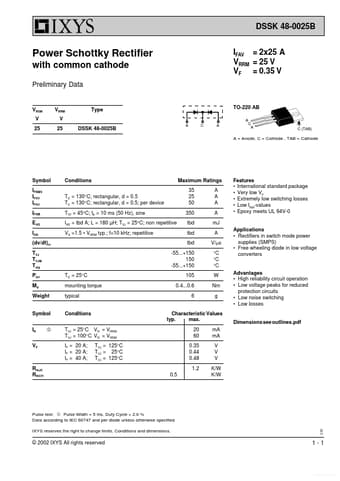

DSSK48-0025B Datasheet (150.41 KB)
DSSK48-0025B
IXYS
150.41 KB
Power schottky rectifier.
DSSK 48-0025B
Power Schottky Rectifier
with common cathode
Preliminary Data
IFAV = 2x25 A VRRM = 25 V VF = 0.35 V
VRSM V 25
VRRM V 25
Type
A C A
.
