DSSK48-003B Datasheet - IXYS

DSSK48-003B Power Schottky Rectifier

DSSK 48-003B DSSK 48-003BS Power Schottky Rectifier with common cathode Preliminary Data IFAV = 2x25 A VRRM = 30 V = 0.35 V VF VRSM V 30 30 VRRM V 30 30 Type TO-263 AB (BS-Type) A C A C (TAB) A TO-220 AC (B-Type) D2 DSSK 48-003B DSSK 48-003BS A A C A C (TAB) A = Anode, C = Cathode , TAB = Cathode Symbol IFRMS IFAV IFAV IFSM EAS IAR (dv/dt)cr TVJ TVJM Tstg Ptot Md Weight Conditions TC = 130°C; rectangular, d = 0.5 TC = 130°C; rectangular, d = 0.5; per device TVJ = 45°C; tp = 10 ms (.

DSSK48-003B Features

* International standard package Very low VF Extremely low switching losses Low IRM-values Epoxy meets UL 94V-0 Applications

* Rectifiers in switch mode power supplies (SMPS)

* Free wheeling diode in low voltage converters TC = 25°

DSSK48-003B Datasheet (41.44 KB)

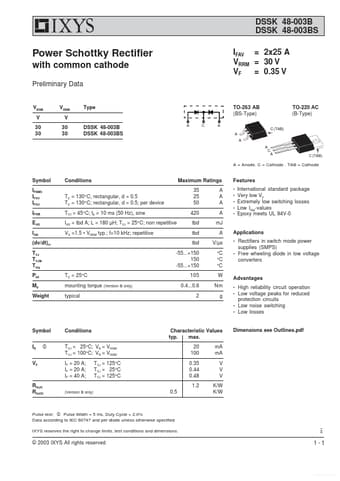

Preview of DSSK48-003B PDF

Datasheet Details

Part number:

DSSK48-003B

Manufacturer:

IXYS

File Size:

41.44 KB

Description:

Power schottky rectifier.
