FMM300-0055P Datasheet - IXYS

FMM300-0055P Trench Power MOSFET

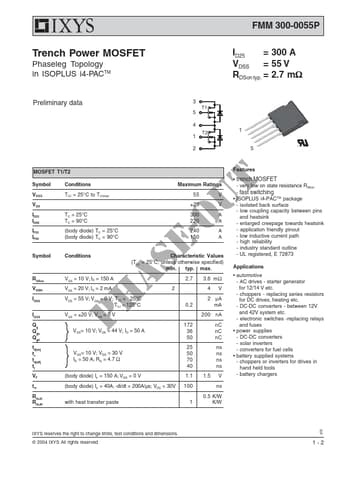

FMM 300-0055P Trench Power MOSFET Phaseleg Topology in ISOPLUS i4-PACTM ID25 = 300 A VDSS = 55 V RDSon typ. = 2.7 mΩ Preliminary data 3 T1 5 4 T2 1 2 1 5 MOSFET T1/T2 Symbol t VDSS VGS u ID25 ID90 IF25 -o IF90 Conditions TVJ = 25°C to TVJmax TC = 25°C TC = 90°C (body diode) TC = 25°C (body diode) TC = 90°C Maximum Ratings 55 V ±20 V 300 A 220 A 240 A 150 A e Symbol s R DSon VGSth a IDSS h IGSS Qg P Q gs Conditions Characteristic Values (TVJ = 25°C, unless otherwise specif.

FMM300-0055P Features

* trench MOSFET - very low on state resistance RDSon - fast switching

* ISOPLUS i4-PACTM package - isolated back surface - low coupling capacity between pins and heatsink - enlarged creepage towards heatsink - application friendly pinout - low inductive current path - high reliabilit

FMM300-0055P Datasheet (101.85 KB)

FMM300-0055P Datasheet Preview — Preview of FMM300-0055P PDF

Datasheet Details

Part number:

FMM300-0055P

Manufacturer:

IXYS

File Size:

101.85 KB

Description:

Trench power mosfet.
