FMM60-02TF N-Channel Power MOSFET

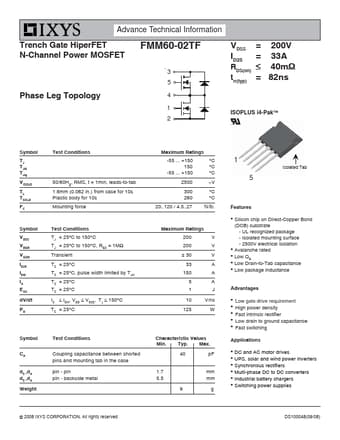

Advance Technical Information Trench Gate HiperFET N-Channel Power MOSFET Phase Leg Topology FMM60-02TF 33 T1 55 44 T2 11 22 VDSS = ID25 = ≤ RDS(on) = trr(typ) 200V 33A 40mΩ 82ns ISOPLUS i4-PakTM Symbol TJ TJM Tstg VISOLD TL TSOLD FC Test Conditions 50/60HZ, RMS, t = 1min, leads-to-tab 1.6mm (0.062 in.) from case for 10s Plastic body for 10s Mounting force Symbol VDSS VDGR VGSM ID25 IDM IA EAS dV/dt PD Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGS = 1MΩ Transient TC = 25°C .

FMM60-02TF Features

* z Silicon chip on Direct-Copper Bond (DCB) substrate - UL recognized package - Isolated mounting surface - 2500V electrical isolation z Avalanche rated z Low QG z Low Drain-to-Tab capacitance z Low package inductance Advantages z Low gate drive requirement z High power density z Fast intrinsic recti

FMM60-02TF Datasheet (95.97 KB)

FMM60-02TF Datasheet Preview — Preview of FMM60-02TF PDF

Datasheet Details

Part number:

FMM60-02TF

Manufacturer:

IXYS

File Size:

95.97 KB

Description:

N-channel power mosfet.
