IXDT30N120D1, IXDH30N120 High Voltage IGBT

IXDT30N120D1 Description

High Voltage IGBT with optional Diode Short Circuit SOA Capability Square RBSOA G IXDH 30N120 IXDH 30N120 D1 IXDT 30N120 IXDT 30N120 D1 C G C VCES =.

IXDT30N120D1 Features

* q q q q q q q q q NPT IGBT technology low saturation voltage low switching losses square RBSOA, no latch up high short circuit capability positive temperature coefficient for easy paralleling MOS input, voltage controlled optional ultra fast diode International standard packages Advantages Space

IXDT30N120D1 Applications

* q Symbol Conditions Characteristic Values (TJ = 25°C, unless otherwise specified) min. typ. max. 1200 4.5 TJ = 25°C TJ = 125°C 2.5 6.5 V V q q q q V(BR)CES VGE(th) ICES IGES VCE(sat) VGE = 0 V IC = 1 mA, VCE = VGE VCE = VCES AC motor speed control DC servo and robot drives DC choppers Uninter

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IXDT30N120D1, IXDH30N120. Please refer to the document for exact specifications by model.

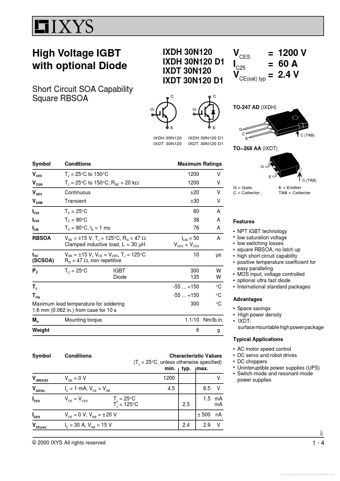

datasheet Preview Page 2 datasheet Preview Page 3
