IXFH24N60X Power MOSFET

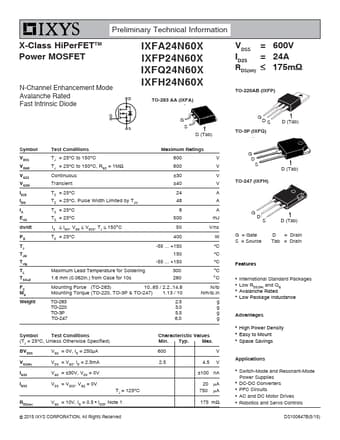

Preliminary Technical Information X-Class HiPerFETTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Diode IXFA24N60X IXFP24N60X IXFQ24N60X IXFH24N60X TO-263 AA (IXFA) VDSS = ID25 = RDS(on) 600V 24A 175m TO-220AB (IXFP) G S D (Tab) GD S TO-3P (IXFQ) D (Tab) Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TL TSOLD FMCd Weight Test Conditions Maximum Ratings TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient 600 V 600 V 30 V.

IXFH24N60X Features

* International Standard Packages

* Low RDS(ON) and QG

* Avalanche Rated

* Low Package Inductance Advantages

* High Power Density

* Easy to Mount

* Space Savings Applications

* Switch-Mode and Resonant-Mode Power Supplies

* DC-DC Converters

* PFC Circuits
