* International Standard Package
* Plastic Overmolded Tab
* High Voltage Package
* Low RDS(ON) and QG
* Avalanche Rated
* 2500V~ Electrical Isolation
* Low Package Inductance Advantages
* High Power Density
* Easy to Mount
* Space Savings Applications
* Sw

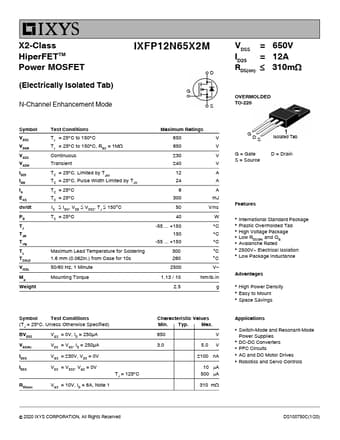

IXFP12N65X2M Datasheet (569.04 KB)
IXFP12N65X2M
IXYS
569.04 KB
Power mosfet.
X2-Class HiperFETTM Power MOSFET
(Electrically Isolated Tab)
N-Channel Enhancement Mode
IXFP12N65X2M
D G
S
VDSS =
ID25 = RDS(on)
650V 12A 310m
.
