IXFP18N60X Power MOSFET

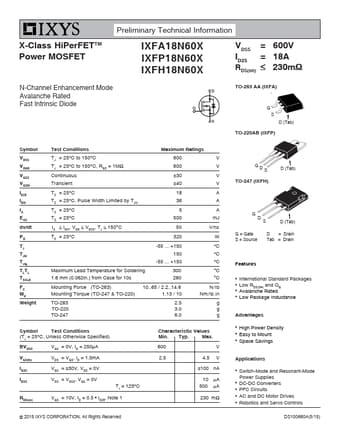

X-Class HiPerFETTM Power MOSFET Preliminary Technical Information IXFA18N60X IXFP18N60X IXFH18N60X VDSS = ID25 = RDS(on) 600V 18A 230m N-Channel Enhancement Mode Avalanche Rated Fast Intrinsic Diode TO-263 AA (IXFA) G S D (Tab) TO-220AB (IXFP) Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TLTL TSOLD FC Md Weight Test Conditions TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient Maximum Ratings 600 600 30 40 V V V V TC = 25C TC = 25C, Pulse Wi.

IXFP18N60X Features

* International Standard Packages

* Low RDS(ON) and QG

* Avalanche Rated

* Low Package Inductance Advantages

* High Power Density

* Easy to Mount

* Space Savings Applications

* Switch-Mode and Resonant-Mode Power Supplies

* DC-DC Converters

* PFC Circuits

IXFA18N60X-IXYS.pdf

IXFP18N60X Datasheet Preview — This datasheet PDF includes multiple part numbers: IXFP18N60X, IXFA18N60X. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IXFP18N60X, IXFA18N60X

Manufacturer:

IXYS

File Size:

184.52 KB

Description:

Power mosfet.

Note:

This datasheet PDF includes multiple part numbers: IXFP18N60X, IXFA18N60X.
Please refer to the document for exact specifications by model.
