IXFQ72N20X3 - Power MOSFET

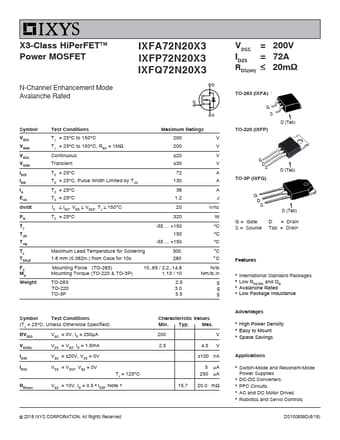

X3-Class HiPerFETTM Power MOSFET N-Channel Enhancement Mode Avalanche Rated IXFA72N20X3 IXFP72N20X3 IXFQ72N20X3 Symbol VDSS VDGR VGSS VGSM ID25 IDM IA EAS dv/dt PD TJ TJM Tstg TL TSOLD FC Md Weight Test Conditions TJ = 25C to 150C TJ = 25C to 150C, RGS = 1M Continuous Transient Maximum Ratings 200 V 200 V 20 V 30 V TC = 25C TC = 25C, Pulse Width Limited by TJM TC = 25C TC = 25C IS  IDM, VDD  VDSS, TJ  150°C TC = 25C 72 130 36 1.2 20 320 -55 +150 150 -55 +150 A A A

IXFQ72N20X3 Features

* International Standard Packages

* Low RDS(ON) and QG

* Avalanche Rated

* Low Package Inductance Advantages

* High Power Density

* Easy to Mount

* Space Savings Applications

* Switch-Mode and Resonant-Mode Power Supplies

* DC-DC Converters

* PFC Circuits

IXFA72N20X3-IXYS.pdf
