IXGL75N250 Datasheet, Igbt, IXYS

IXGL75N250 Features

  • Igbt Very High Peak Current Capability Low Saturation Voltage MOS Gate Turn-On Rugged NPT Structure ISOPLUS i5-PAKTM High Voltage Package - Isolated Back Surface - Enlarged Creepage Torwards

PDF File Details

Part number:

IXGL75N250

Manufacturer:

IXYS

File Size:

180.17kb

Download:

📄 Datasheet

Description:

High voltage igbt.

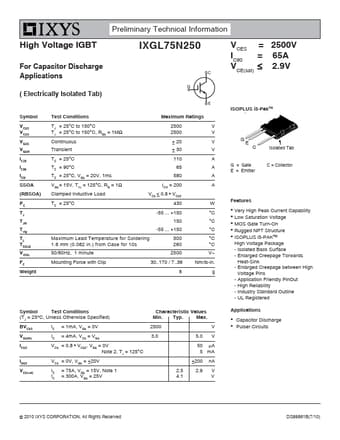

Datasheet Preview: IXGL75N250 📥 Download PDF (180.17kb)
Page 2 of IXGL75N250 Page 3 of IXGL75N250

IXGL75N250 Application

  • Applications IXGL75N250 VCES = IC90 = VCE(sat) ≤ 2500V 65A 2.9V ( Electrically Isolated Tab) Symbol VCES VCES VGES VGEM IC25 IC90 ICM SSOA (RBS
