IXGT10N170, IXGH10N170 Datasheet - IXYS

IXGT10N170 High Voltage IGBT

High Voltage IGBT IXGH10N170 IXGT10N170 VCES = IC90 = VCE(sat) ≤ 1700V 10A 4.0V TO-247 (IXGH) Symbol VCES VCGR VGES VGEM IC25 IC90 ICM SSOA (RBSOA) PC TJ TJM Tstg TTLSOLD Md Weight Test Conditions TC = 25°C to 150°C TJ = 25°C to 150°C, RGE = 1MΩ Continuous Transient TC = 25°C TC = 90°C TC = 25°C, 1ms VGE = 15V, TVJ = 125°C, RG = 16Ω Clamped inductive load TC = 25°C 1.6mm (0.062 in.) from case for 10s Plastic body for 10 seconds Mounting torque (TO-247) TO-247 TO-268 Symbol Test Conditions.

IXGT10N170 Features

* z International standard packages JEDEC TO-268 and JEDEC TO-247 AD z High current handling capability z MOS Gate turn-on - drive simplicity z Rugged NPT structure z Molding epoxies meet UL 94 V-0 flammability classification Applications z Capacitor discharge & pulser circuits z AC motor speed contro

IXGH10N170-IXYS.pdf

This datasheet PDF includes multiple part numbers: IXGT10N170, IXGH10N170. Please refer to the document for exact specifications by model.

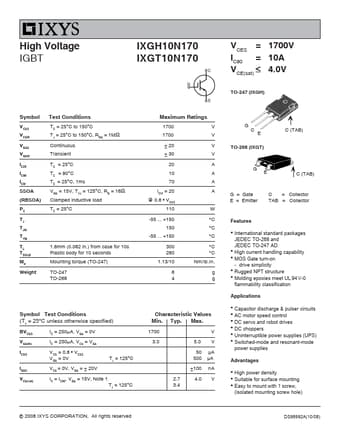

IXGT10N170 Datasheet Preview Page 2 IXGT10N170 Datasheet Preview Page 3

Datasheet Details

Part number:

IXGT10N170, IXGH10N170

Manufacturer:

IXYS

File Size:

183.72 KB

Description:

High voltage igbt.

Note:

This datasheet PDF includes multiple part numbers: IXGT10N170, IXGH10N170.
Please refer to the document for exact specifications by model.
