IXGT15N120BD1

Low VCE(sat) IGBT

IXYS Corporation

Image	Manufacturer	Part Number	B2B mpn	Description	Distributor	Stock	Quantity	Price	Buy Now
	IXYS Corporation	IXGT15N120BD1	IXGT15N120BD1	IGBT 1200V 30A TO-268AA	DigiKey	0	0	$0	🛒 Buy Now

📥 Download PDF (88.14 KB)

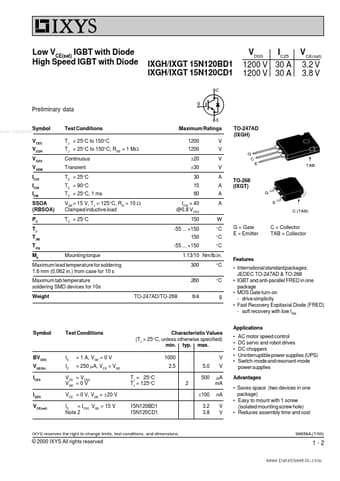

IXGT15N120BD1 Datasheet Preview Page 1 — Preview of IXGT15N120BD1 Datasheet

Datasheet Details

Part number:

IXGT15N120BD1

Manufacturer:

IXYS Corporation

File Size:

88.14 KB

Download:

📄 Download IXGT15N120BD1 Datasheet PDF

Description:

Low vce(sat) igbt.
Low VCE(sat) IGBT with Diode High Speed IGBT with Diode VDSS IXGH/IXGT 15N120BD1 IXGH/IXGT 15N120CD.
1 IC25 VCE(sat) 3.2 V 3.8 V 1200 V 30 A 1200 V 30 A Preliminary data Symbol VCES VCGR VGES VGEM .

✔ IXGT15N120BD1 Features

International standard packages: JEDEC TO-247AD & TO-268
IGBT and anti-parallel FRED in one package
MOS Gate turn-on - drive simplicity
Fast Recovery Expitaxial D

✔ IXGT15N120BD1 Application

Symbol Test Conditions Characteristic Values (TJ = 25°C, unless otherwise specified) min. typ. max. 1000 2.5
