IXGT40N60C2D1 HiPerFAST IGBT

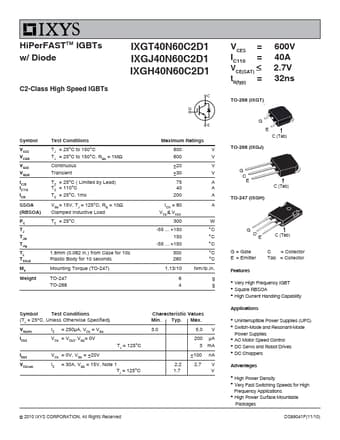

HiPerFASTTM IGBTs w/ Diode C2-Class High Speed IGBTs IXGT40N60C2D1 IXGJ40N60C2D1 IXGH40N60C2D1 VCES = IC110 = ≤VCE(SAT) tfi(typ) = 600V 40A 2.7V 32ns TO-268 (IXGT) Symbol VCES VCGR VGES VGEM IICC12150 ICM SSOA (RBSOA) PC TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 150°C TJ = 25°C to 150°C, RGE = 1MΩ Continuous Transient TTCC = 25°C ( Limited by Lead) = 110°C TC = 25°C, 1ms VGE= 15V, TJ = 125°C, RG = 10Ω Clamped Inductive Load TC = 25°C 1.6mm (0.062 in.) from Case.

IXGT40N60C2D1 Features

* z Very High Frequency IGBT z Square RBSOA z High Current Handling Capability Applications z Uninterruptible Power Supplies (UPS) z Switch-Mode and Resonant-Mode Power Supplies z AC Motor Speed Control z DC Servo and Robot Drives z DC Choppers Advantages z High Power Density z Very Fast Switchin
