IXXH50N60B3 Datasheet - IXYS

IXXH50N60B3 600V IGBTs

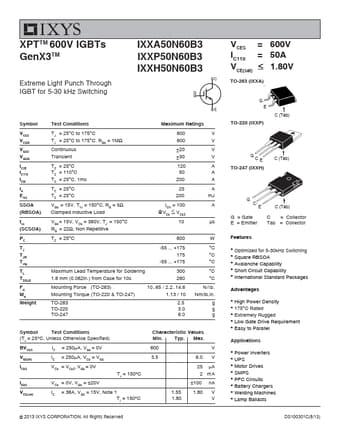

XPTTM 600V IGBTs GenX3TM Extreme Light Punch Through IGBT for 5-30 kHz Switching IXXA50N60B3 IXXP50N60B3 IXXH50N60B3 Symbol VCES VCGR VGES VGEM IC25 IC110 ICM IA EAS SSOA (RBSOA) tsc (SCSOA) PC TJ TJM Tstg TL TSOLD FC Md Weight Test Conditions Maximum Ratings TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1M Continuous Transient 600 V 600 V ±20 V ±30 V TC = 25°C TC = 110°C TC = 25°C, 1ms TC = 25°C TC = 25°C VGE = 15V, TVJ = 150°C, RG = 5 Clamped Inductive Load VGE= 15V, VCE = 360V, TJ = 1.

IXXH50N60B3 Features

* Optimized for 5-30kHz Switching

* Square RBSOA

* Avalanche Capability

* Short Circuit Capability

* International Standard Packages Advantages

* High Power Density

* 175°C Rated

* Extremely Rugged

* Low Gate Drive Requirement

* Easy to Parallel Applications

IXXH50N60B3 Datasheet (277.14 KB)
