IXXH50N60C3 - Extreme Light Punch Through IGBT

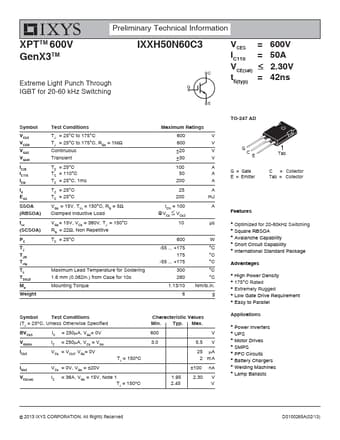

Preliminary Technical Information XPTTM 600V GenX3TM Extreme Light Punch Through IGBT for 20-60 kHz Switching IXXH50N60C3 VCES = IC110 = V ≤ CE(sat) tfi(typ) = 600V 50A 2.30V 42ns Symbol VCES VCGR VGES VGEM IC25 IC110 ICM IA EAS SSOA (RBSOA) tsc (SCSOA) PC TJ TJM Tstg TL TSOLD Md Weight Test Conditions TJ = 25°C to 175°C TJ = 25°C to 175°C, RGE = 1MΩ Continuous Transient TC = 25°C TC = 110°C TC = 25°C, 1ms TC = 25°C TC = 25°C VGE = 15V, TVJ = 150°C, RG = 5Ω Clamped Inductive Load VGE= 15V,

IXXH50N60C3 Features

* z Optimized for 20-60kHz Switching z Square RBSOA z Avalanche Capability z Short Circuit Capability z International Standard Package Advantages z High Power Density z 175°C Rated z Extremely Rugged z Low Gate Drive Requirement z Easy to Parallel Applications z Power Inverters z UPS z Motor Drives z
